Rental basis Daily,Weekly,Monthly- Self Operated

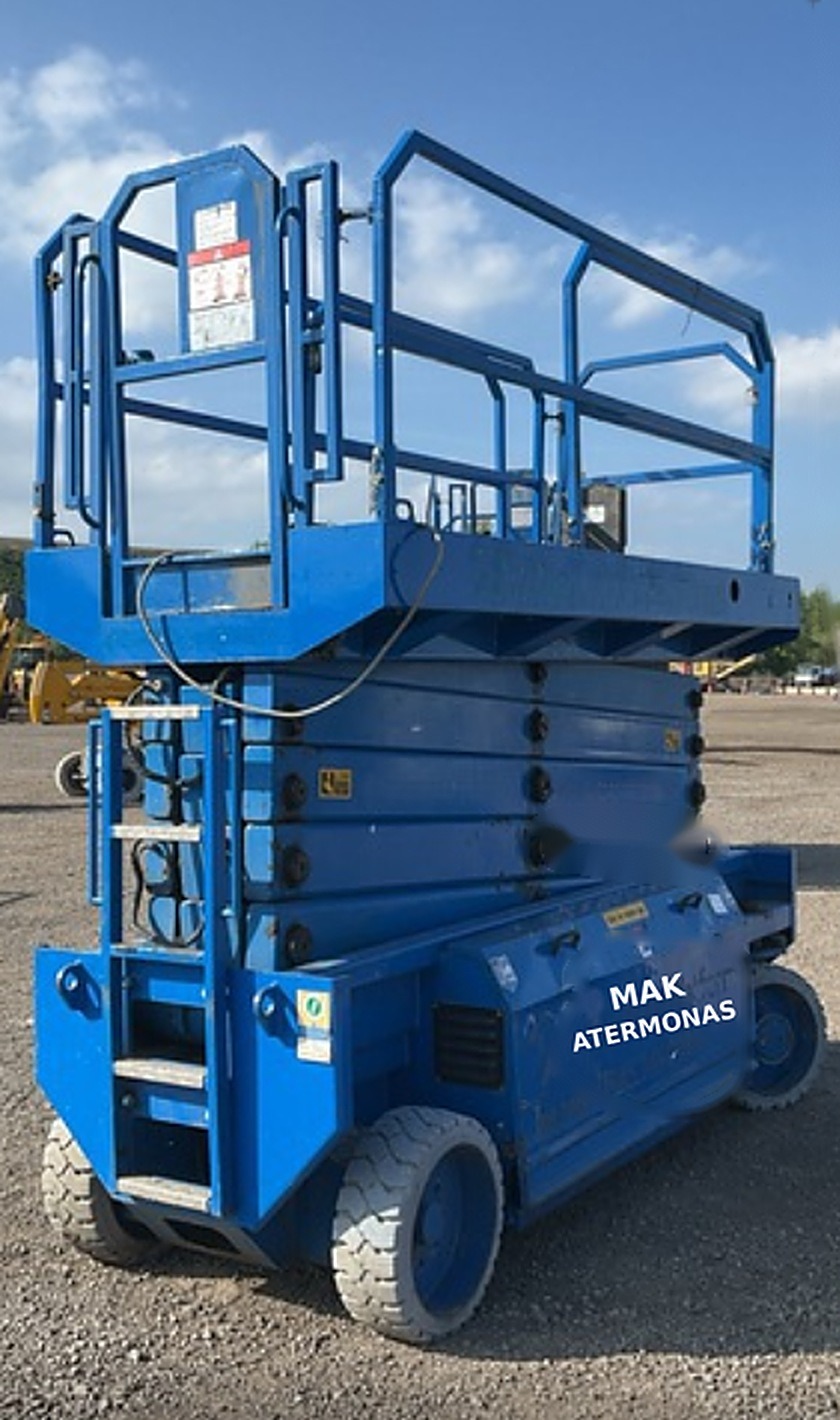

H.A.B S152-12 E2WD / Narrow Electric Scissorlift 15m
Description
Narrow 1.19 m electric slab scissor lift with 15.20 m working height and a 500 kg capacity on both the platform and its 1.20 m extension. It is drivable at full height with fully proportional controls. Ideal for indoor work in warehouses and industrial buildings.
Specifications
- Outreach: N/A

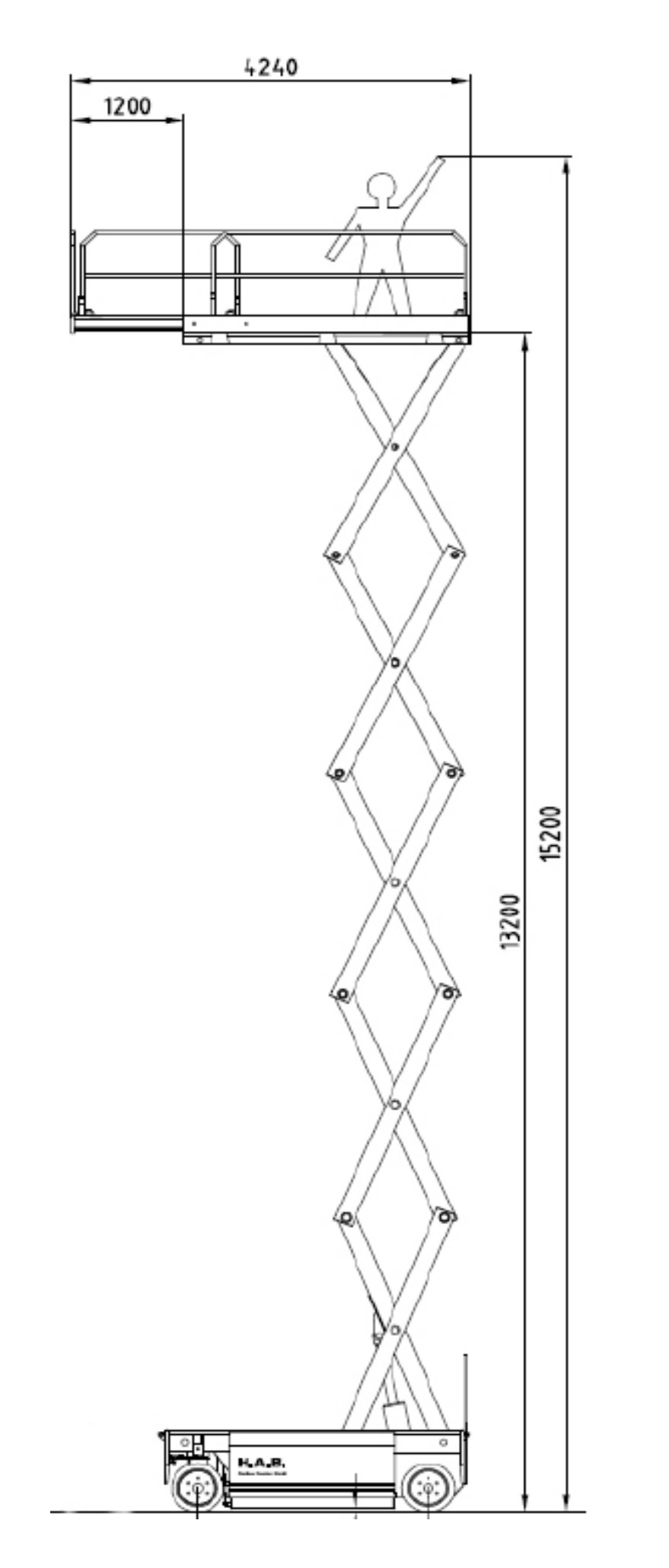

- Working Height: 15.20 m
- Safe Working Load (SWL): 500 kg

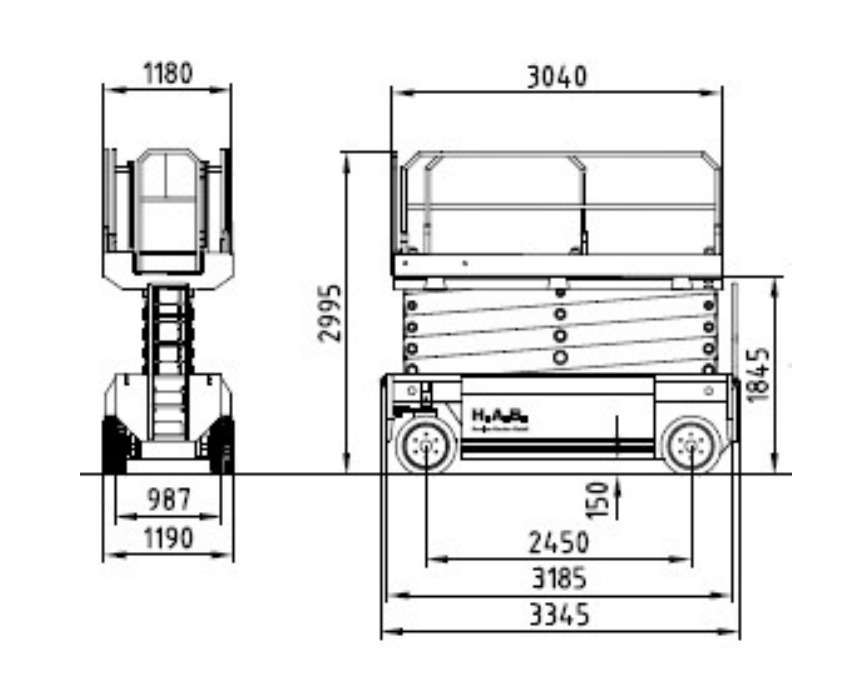

- Closed Height: 2.99 m
- Platform Size: 3.04 m x 1.18 m
- Platform Extendable: Yes – 1.20 m (max 4.24 m x 1.18 m)
- Platform Height: 13.20 m
- Closed Length: 3.35 m
- Width: 1.19 m
- Closed Height – With Guardrails Lowered: 2.25 m
- Drive Speed Stowed Position: 4.0 km/h
- Drive Speed With Platform Raised: 0.7 km/h
- Lift Speed Raise Lower: 75 / 75 sec
- Gradeability: 25%
- PowerType: Battery (48V, 360 Ah)
- Weight: 4700 kg
- Platform Capacity SWL: 500 kg (incl. platform extension)
- OperatorOptional: Yes
- Terrain: Slab (2WD)
- Environments: Indoor
- Non Marking Tyres: Yes
- Maximum # of Persons: 3
Applications
Video
Downloads
Working Height
15.20 m
Safe Working Load
500 kg
Weight
4700 kg
Order Details
