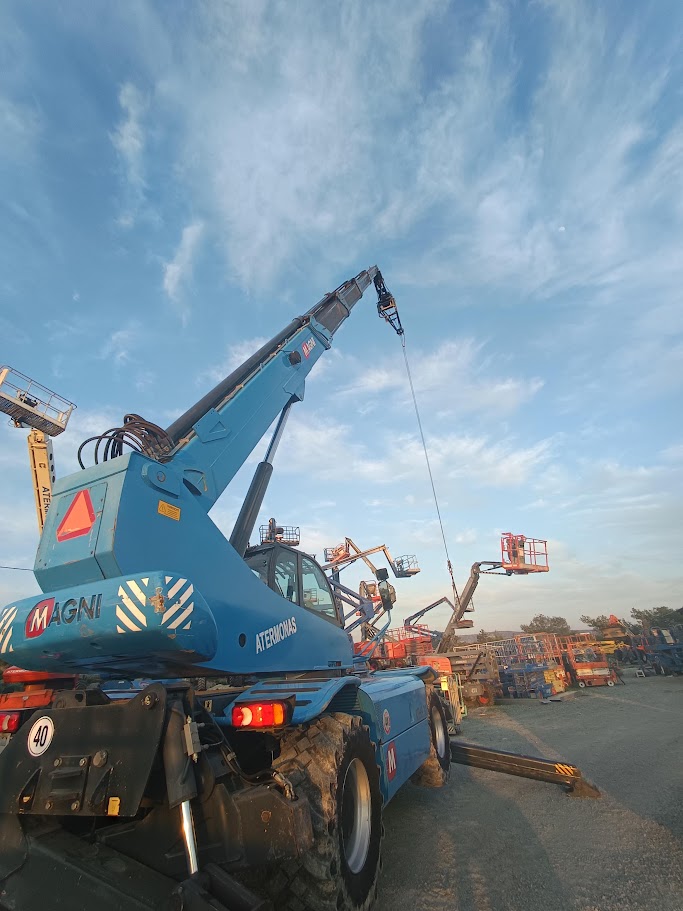

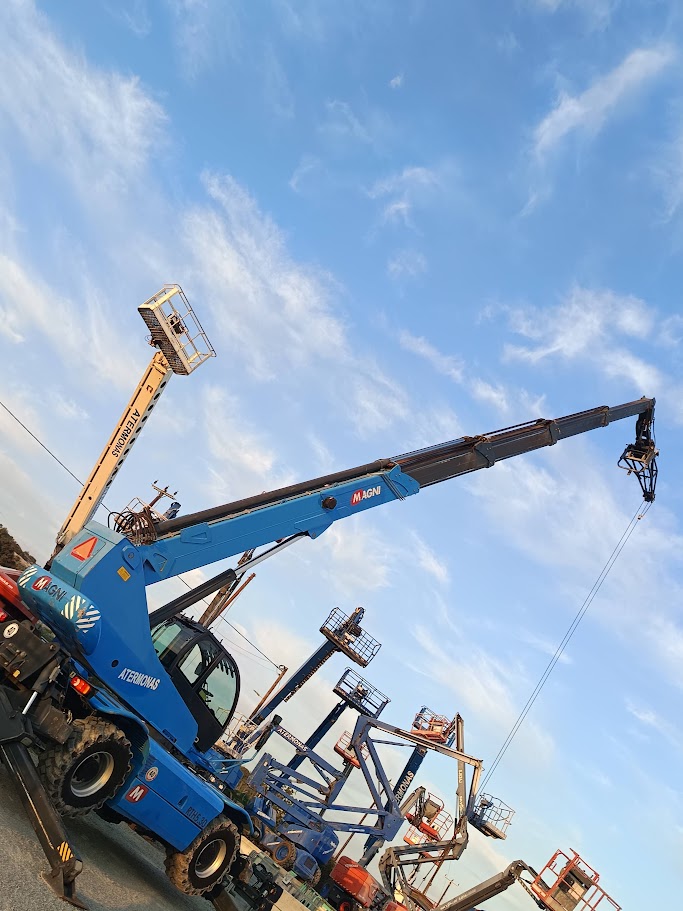

Magni RTH 5.30 Rotating Telehandler – Maximum Reach, Precision & Safety
Description
The Magni RTH 5.30 is a heavy-duty rotating telehandler designed for complex lifting operations where height, reach, and flexibility are critical. With a 5,000 kg rated capacity, 30 m maximum lifting height, and 360° continuous rotation, the RTH 5.30 combines the functions of a telehandler, crane, and aerial work platform in one machine. Built for demanding construction and industrial sites, it is fully compliant with EN280 and European safety standards, making it ideal for professional rental fleets and large-scale projects in Cyprus and Europe.
-
True rotating telehandler: 360° rotation allows work without repositioning the machine.
-
High lift & outreach: 30 m vertical reach and approx. 25 m horizontal reach cover complex site geometry.
-
Heavy lifting capacity: 5.0 t rated load for demanding material handling tasks.
-
Advanced stabilisation: Independent stabilisers ensure maximum stability in all working modes.
-
Integrated safety systems: LMI, load charts, and automatic motion limitation according to EN280.
-
Multi-function machine: Works as a telehandler, crane, and MEWP with approved attachments.
-
Operator comfort: Pressurised cabin, ergonomic controls, excellent visibility.
-
Rental-ready design: Robust construction, high residual value, strong brand acceptance.
Specifications
-
Rated Load Capacity: 5,000 kg
-
Maximum Lifting Height: 30.0 m
-
Maximum Forward Reach: approx. 25.0 m
-
Rotation: 360° continuous
-
Engine: Volvo / Deutz Stage V diesel, approx. 160–175 kW
-
Transmission: Hydrostatic, 4WD
-
Stabilisation: Front stabilisers + rear stabilisers (variable geometry)
-
Operating Weight: approx. 21,000 – 22,000 kg
-
Cabin: Pressurised ROPS/FOPS certified cabin
-
Boom Type: Telescopic, multi-section
-
Attachments: Forks, winch, jib, work platform, buckets (type-approved)
-
Control System: Load Moment Indicator (LMI) with real-time charts
-
Compliance: EN280, EN1459-3, EU Machinery Directive
Applications
-
Large construction and infrastructure projects
-
Steel structure erection and precast installation
-
Industrial maintenance and plant construction
-
High-level material handling and positioning
-
Professional rental fleets for complex lifting operations
