Rental basis Daily,Weekly,Monthly- Self Operated

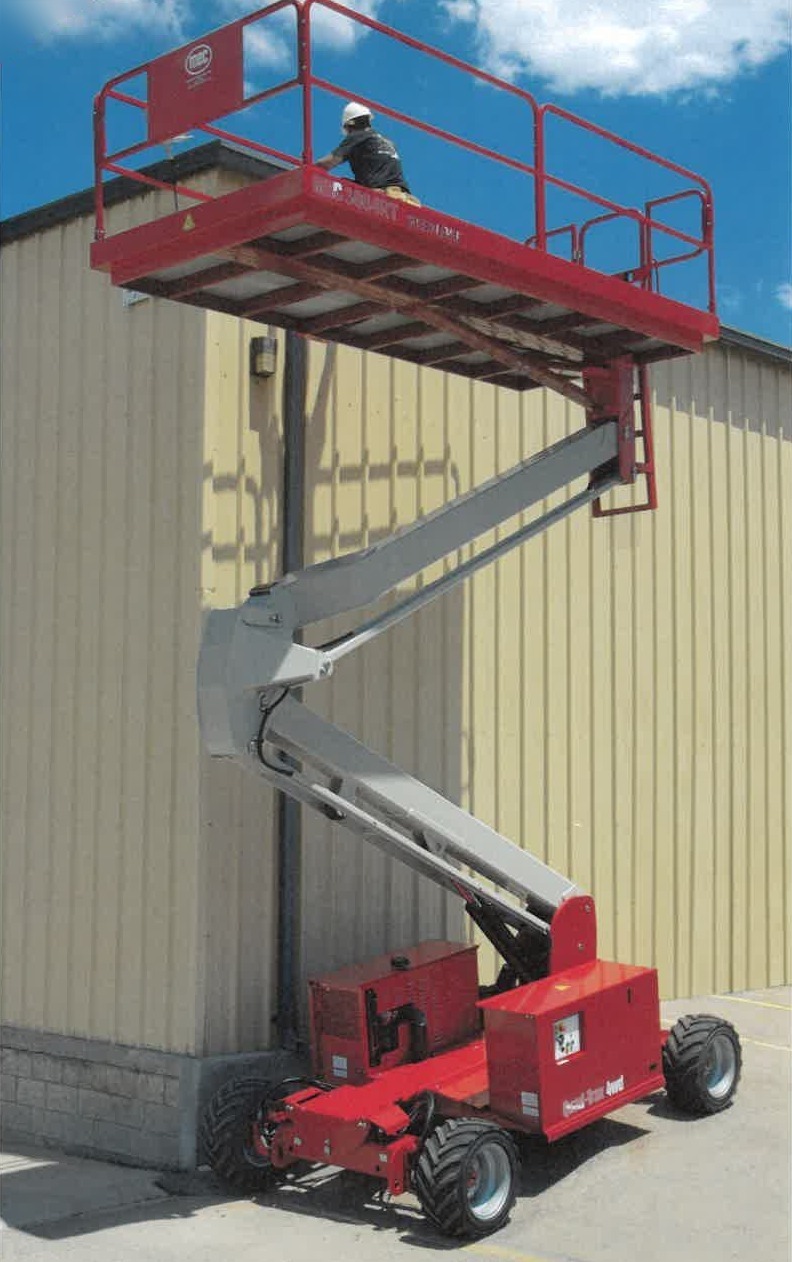

MEC 3084RT / Self Leveling Rough Terrain Diesel Sigma Lift 11m
Description
Rough-terrain 4WD diesel Sigma lift with 11 m working height and a large 4.27 x 1.82 m platform carrying 680 kg. Its Speed Level system automatically levels the platform on slopes up to 14° side to side and 10° fore and aft, and it is drivable at full height.

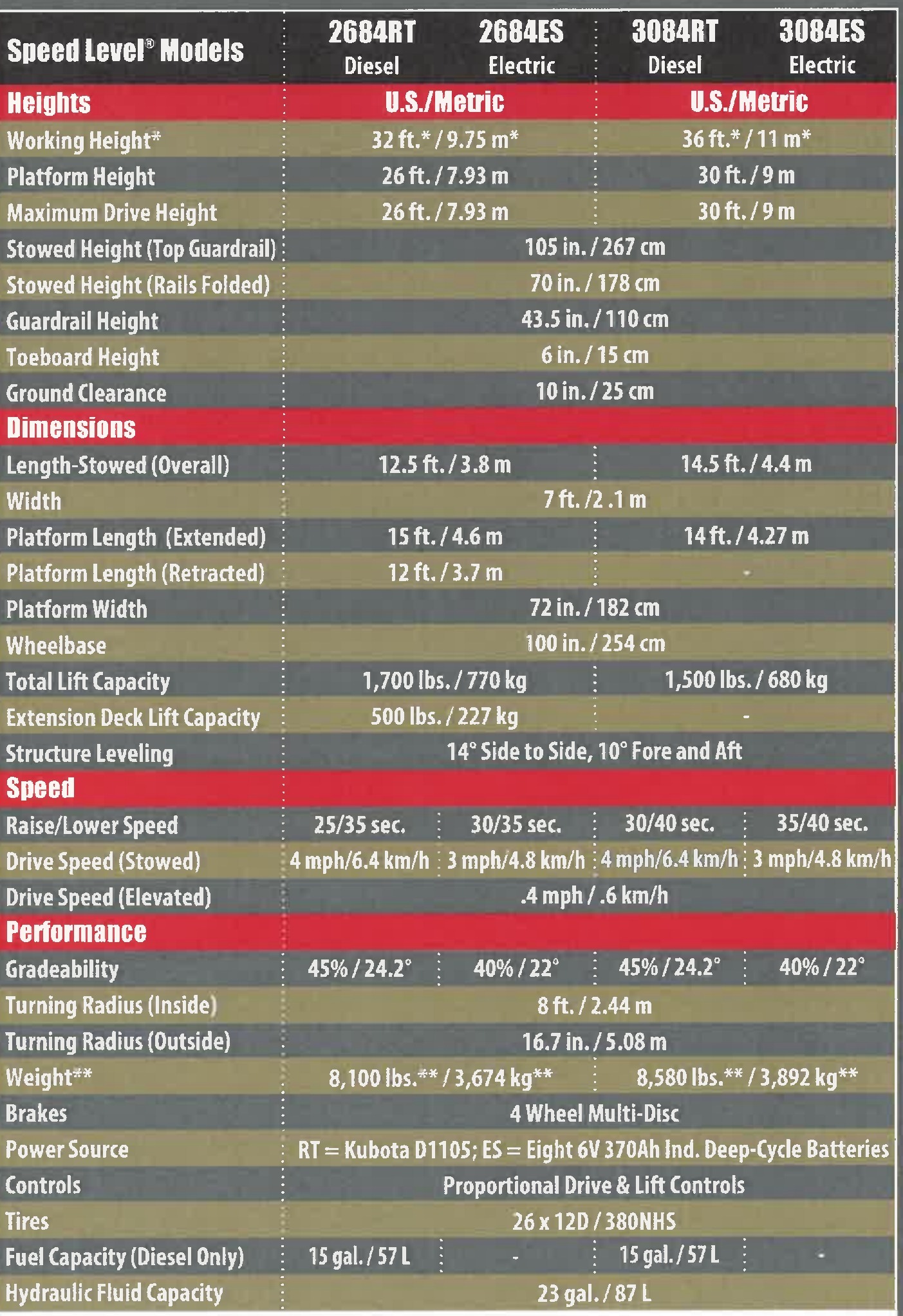

Specifications
- Outreach: N/A
- Working Height: 11.00 m
- Safe Working Load (SWL): 680 kg
- Closed Height: 2.67 m
- Platform Size: 4.27 m x 1.82 m
- Platform Extendable: N/A
- Platform Height: 9.00 m
- Closed Length: 4.40 m
- Width: 2.10 m
- Closed Height – With Guardrails Lowered: 1.78 m
- Drive Speed Stowed Position: 6.4 km/h
- Drive Speed With Platform Raised: 0.6 km/h
- Lift Speed Raise Lower: 30 / 40 sec
- Gradeability: 45%
- PowerType: Diesel (Kubota D1105, Tier 4 Final)
- Weight: 3892 kg
- Platform Capacity SWL: 680 kg
- OperatorOptional: Yes
- Terrain: Rough Terrain (4WD, automatic platform levelling)
- Environments: Outdoor
- Non Marking Tyres: No
- Maximum # of Persons: 3
Applications
Video
Downloads
Working Height
11.00 m
Safe Working Load
680 kg
Weight
3892 kg
Order Details
