Rental basis Daily,Weekly,Monthly- Self Operated

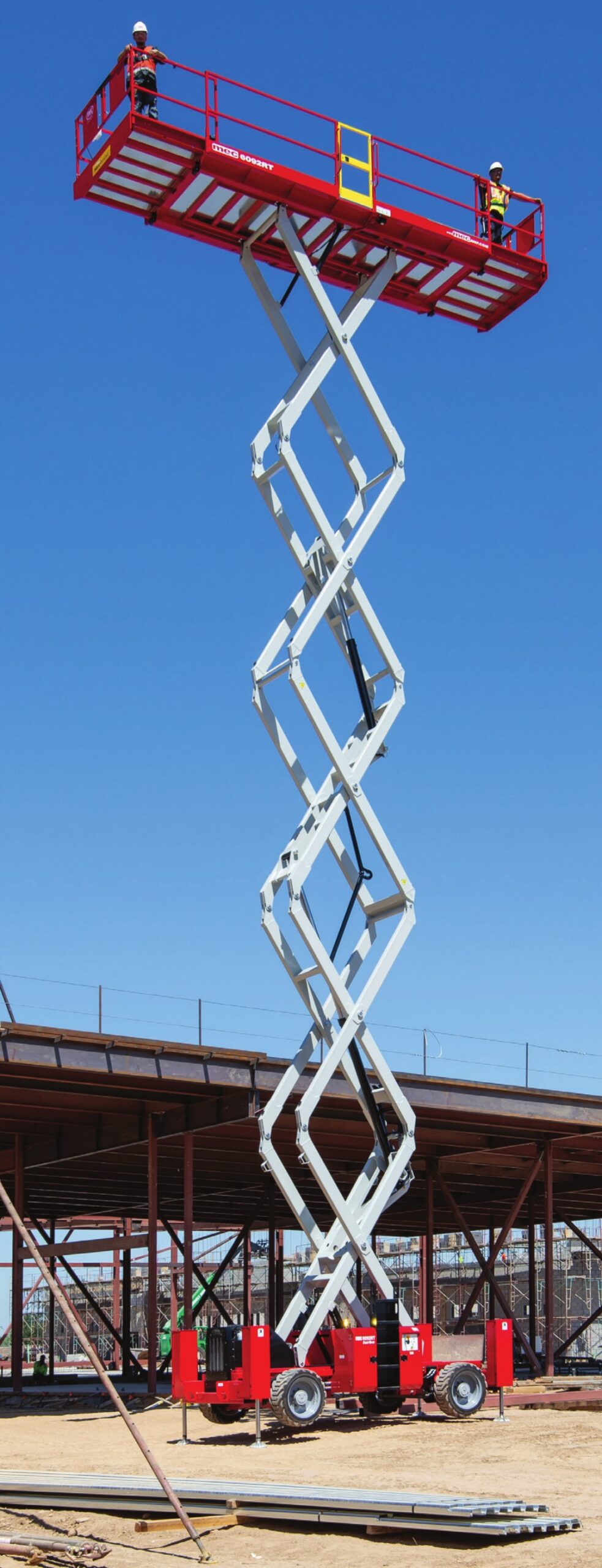

MEC 6092RT / Self Leveling Heavy Duty Rough Terrain Diesel Scissorlift 20m
Description
Heavy-duty 4WD diesel rough-terrain scissor lift with 20.20 m working height and a huge Ultra Deck platform that extends to 7.54 m with dual roll-out decks. It carries 540 kg and has “One-Touch” auto-levelling outriggers. Ideal for large construction sites.

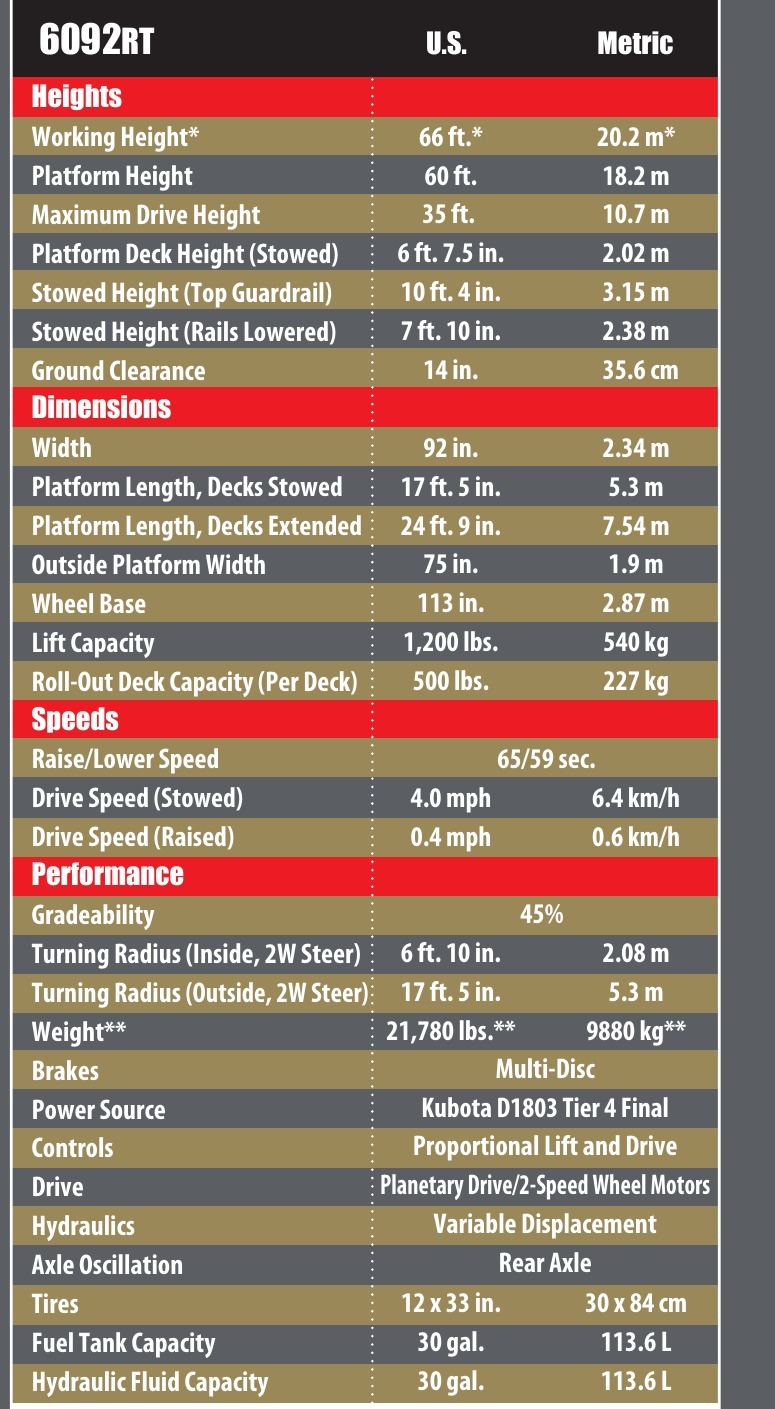

Specifications
- Outreach: N/A
- Working Height: 20.20 m
- Safe Working Load (SWL): 540 kg
- Closed Height: 3.15 m
- Platform Size: 5.30 m x 1.90 m
- Platform Extendable: Yes – dual roll-out decks (max 7.54 m)
- Platform Height: 18.20 m
- Closed Length: 5.30 m
- Width: 2.34 m
- Closed Height – With Guardrails Lowered: 2.38 m
- Drive Speed Stowed Position: 6.4 km/h
- Drive Speed With Platform Raised: 0.6 km/h
- Lift Speed Raise Lower: 65 / 59 sec
- Gradeability: 45%
- PowerType: Diesel (Kubota D1803 Tier 4 Final)
- Weight: 9880 kg
- Platform Capacity SWL: 540 kg (227 kg per roll-out deck)
- OperatorOptional: Yes
- Terrain: Rough Terrain (4WD, auto-levelling outriggers)
- Environments: Outdoor
- Non Marking Tyres: No
- Maximum # of Persons: 4
Applications
Video
Downloads
Working Height
20.20 m
Safe Working Load
540 kg
Weight
9880 kg
