Rental basis Daily,Weekly,Monthly- Self Operated

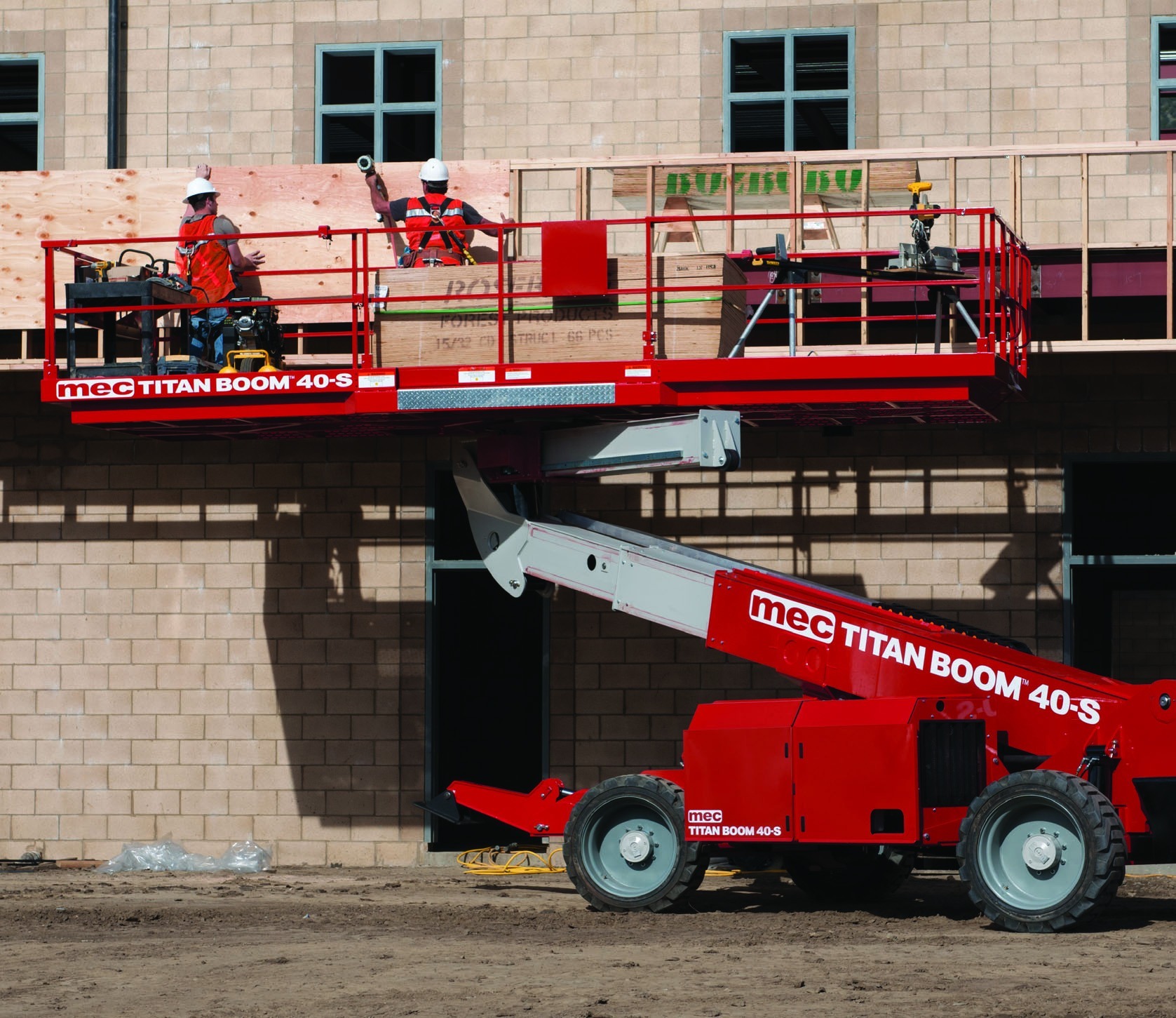

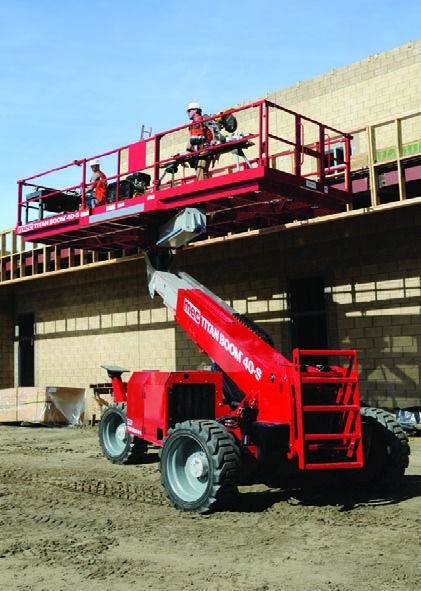

MEC Titan Boom 40-S / Self Leveling Ultra Deck Rough Terrain Diesel Boom Lift 14m
Description
Construction-grade self-propelled boom with a huge 6.70 x 2.28 m ultra deck and 1800 kg capacity (up to 4 persons plus materials). It offers 14.20 m working height, 180° platform rotation, 4WD and three steering modes. The capacity of a telehandler with the reach of a boom.

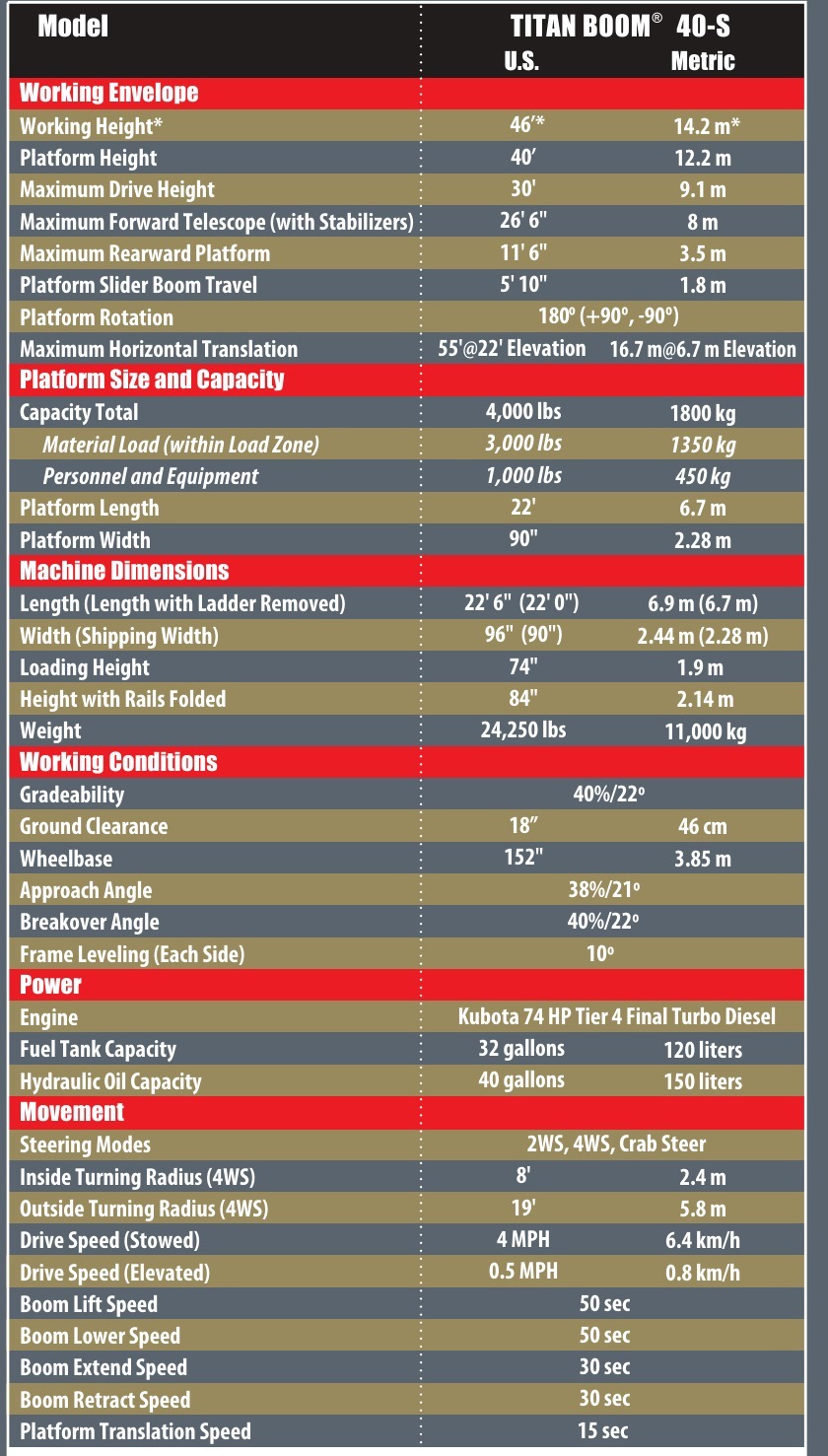

Specifications
- Outreach: 8.00 m
- Working Height: 14.20 m
- Safe Working Load (SWL): 1800 kg
- Closed Height: N/A

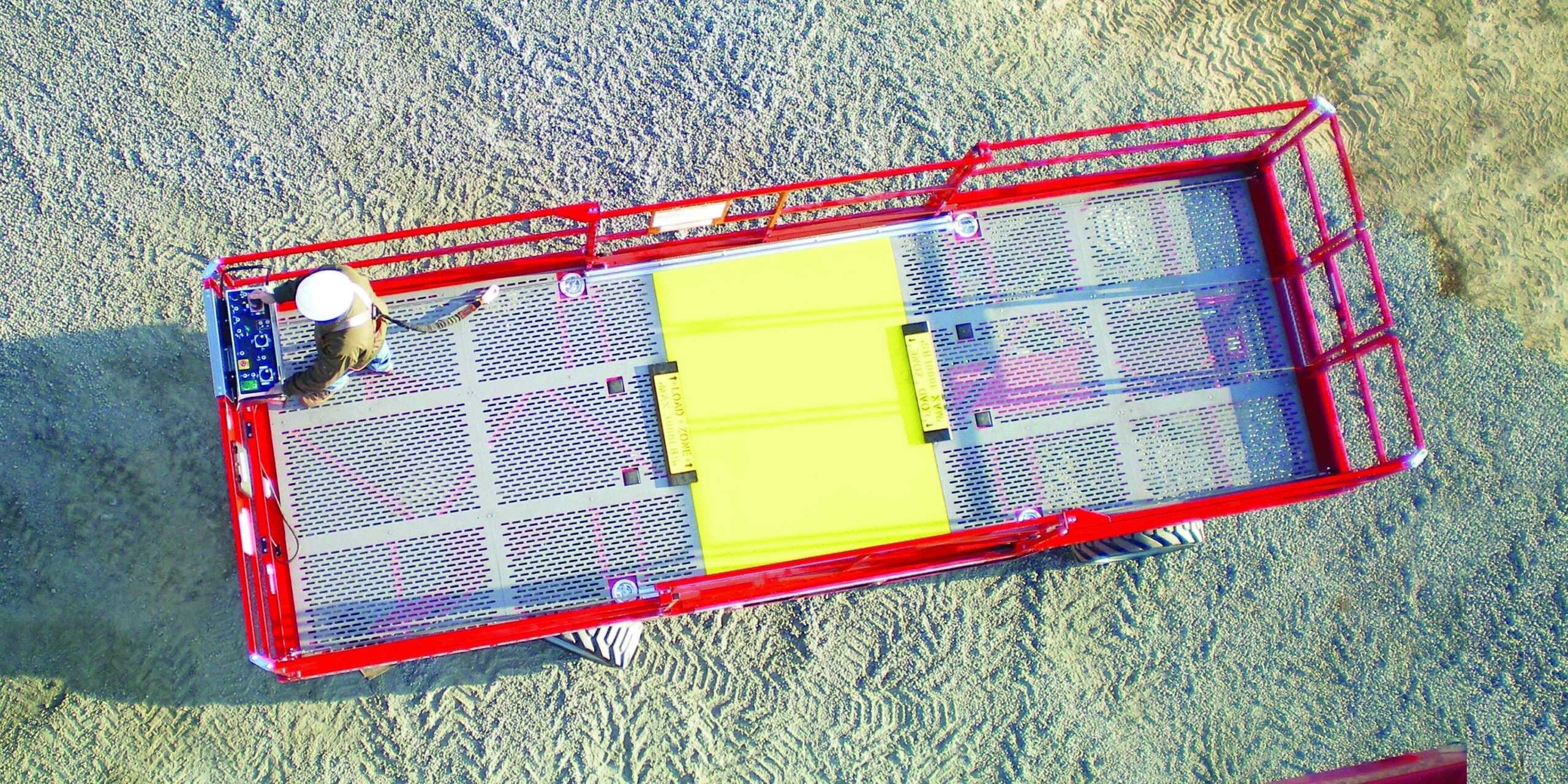

- Platform Size: 6.70 m x 2.28 m
- Platform Extendable: N/A
- Platform Height: 12.20 m
- Closed Length: 6.90 m
- Width: 2.44 m
- Closed Height – With Guardrails Lowered: 2.14 m
- Drive Speed Stowed Position: 6.4 km/h
- Drive Speed With Platform Raised: 0.8 km/h
- Lift Speed Raise Lower: 50 / 50 sec
- Gradeability: 40%
- PowerType: Diesel (Kubota 74 HP Tier 4 Final Turbo)
- Weight: 11000 kg
- Platform Capacity SWL: 1800 kg (1350 kg material + 450 kg personnel)
- OperatorOptional: Yes
- Terrain: Rough Terrain (4WD, stabilizers with auto-levelling)
- Environments: Outdoor
- Non Marking Tyres: No
- Maximum # of Persons: 4
Applications
Video
Downloads
Working Height
14.20 m
Safe Working Load
1800 kg
Weight
11000 kg
